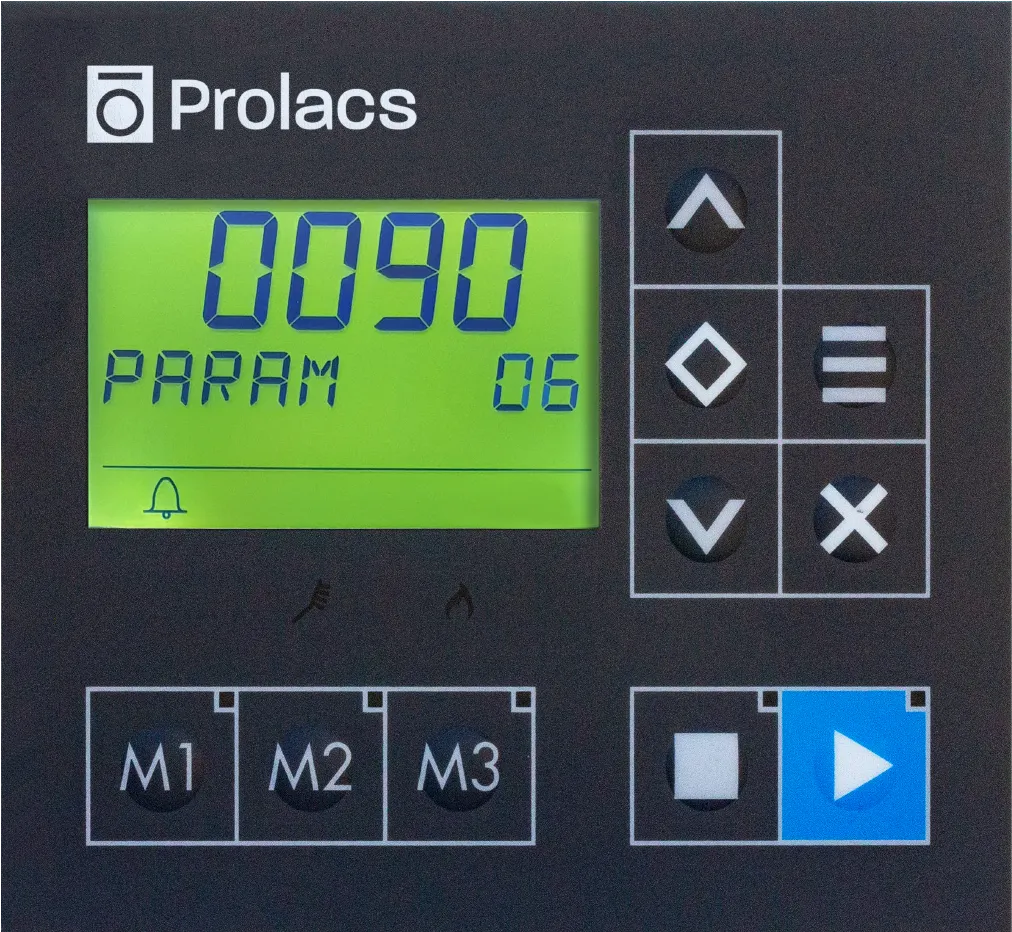

Felis-D3

Tumble Dryer Controller

It is a control panel for industrial drying machines designed to work under difficult conditions. It is an easy-to-use, professional serial controller with Custom Design LCD display and membrane keypad supported by icons. Resistant to vibration and dust. It has 9 user-defined programs. The design of the control panel is customized according to the needs and designed in accordance with the brand according to customer demands.

Documents




Specifications

  • Fast commissioning via direct connection.
  • Flexible user program support, diagnostic control and a wide list of parameters.
  • Suitable for heating / steam / gas heating.
  • Tilting support support.
  • Humidity sensor and PT100 support. (Optional)
  • Suitable for coin operated


  • Features

    Inputs/Outputs

    Analog Input

    Temperature Sensor Input (-10~100 °C)

    Temperature Input PT100 (Optional)

    IR Sensor Input

    1

    1

    1

    Analog Output

    AC Drive Control 0~10V DC

    1

    Digital Input

    5-24 V DC/AC

    16

    Digital Output

    250 V DC/AC Relay NA

    16

    RJ9 Digital Sensor Input

    Humidity Sensor 1-Wire

    1

    Programming

    Program Count

    3 Default Programs

    17 User Programs

    Technical Specifications

    Operating Voltage

    24 V AC

    Operating Temperature

    0-60 °C

    Operating Humidty

    %10 - 85 (Non-Condensing)

    Keyboard

    10 Keys

    Display

    80x50 mm Custom Designed LCD

    Dimensions

    196x160x35 mm
