Felis-W2
Tumble Washer Controller

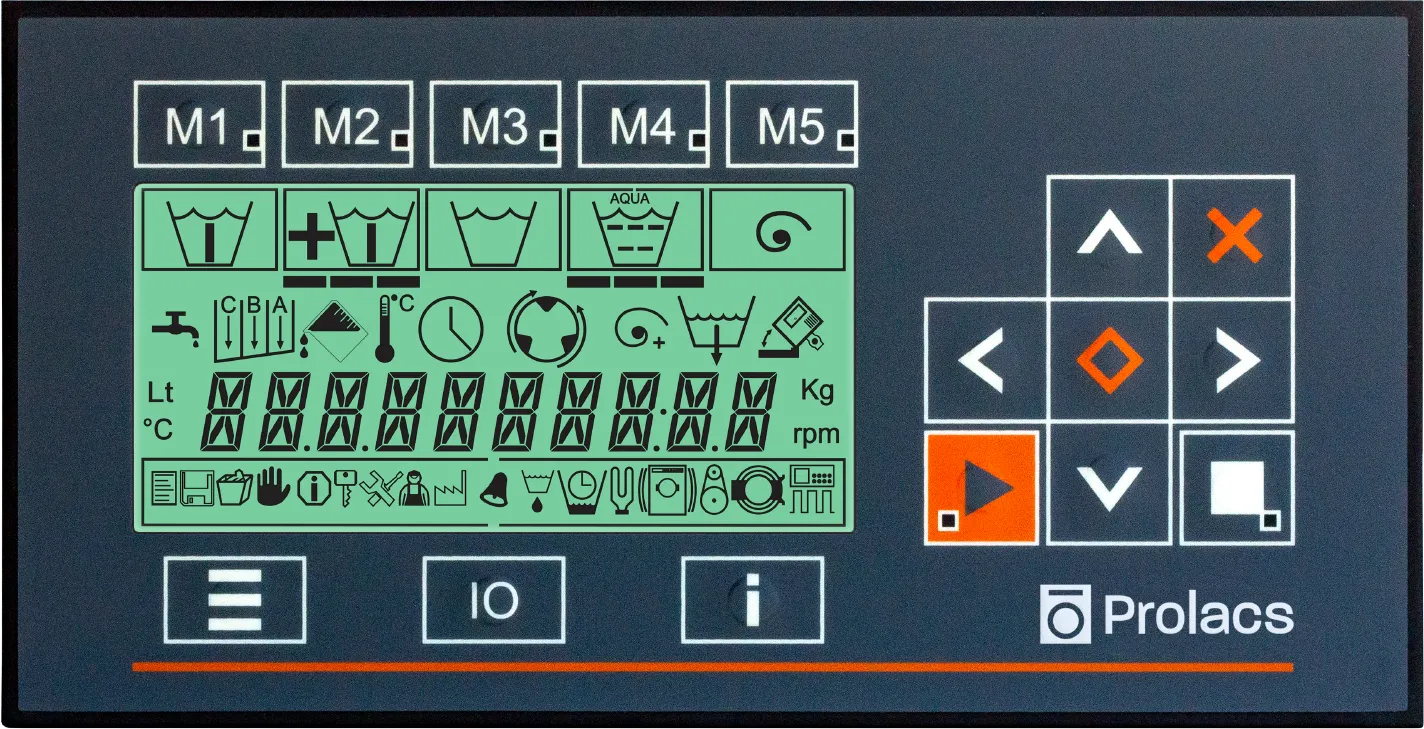

It is a control panel for industrial washing machines designed for heavy industrial conditions. Resistant to vibration and dust. It has a total capacity of 40 programs including 16 default and 24 user defined programs. It is an easy-to-use, standard serial controller thanks to the Custom Design LCD display and membrane keypad supported by icons. The design of the control panel is customized according to the needs and designed in accordance with the brand according to customer demands.
Specifications
Features
Inputs/Outputs
Analog Input
Onboard Level Sensor (Hydrostatic 0-100 cm)
Temperature Sensor Input (-10~100 °C)
1
1
Analog Output
AC Drive Control 0~10V DC
1
Digital Input
5-24V DC
8
Counter Input
5-24 V DC 1 KHz
1
Digital Output
24V DC 1A Relay NO
250V AC 1A Relay NO
24V AC/DC 1A Relay NO (Optional)
16
2
6+6
Programming
Program Count
16 Default Programs
24 User Programs
40
Technical Specifications
Operating Voltage
12 V AC/DC
Power Consumption
Max 4W
Operating Temperature
0~60 °C
Operating Humidty
%10 - 85 (Non-Condensing)
Isolation
2000 V Digital
Keyboard
16 Keys
Display
130x62 mm Custom Designed LCD
Dimensions
130x256x35 mm
Processor
Micro Processor
Communication Port
RS 485 (Optional)
