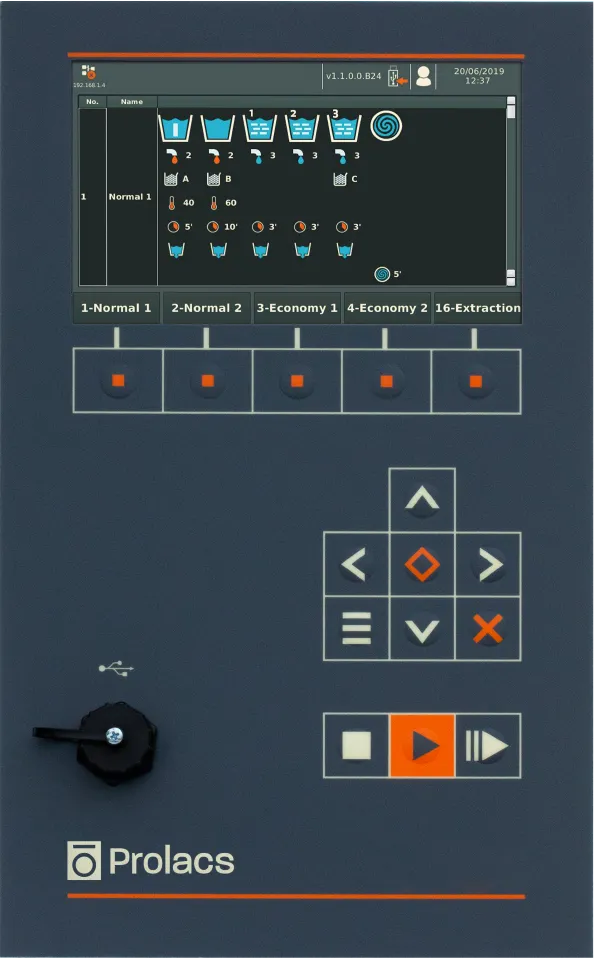

Felis-W4

Tumble Washer Controller

It is a control panel for industrial washing machines designed for heavy industrial conditions. Resistant to vibration and dust. It has 100 programming capacity and 9 working stages. The design of the controller is customized according to the needs and designed according to the customer's demands.

Documents




Specifications

  • Professional serial controller with 7 ”LCD (800x480 RGB) display.
  • User-friendly operation with Color 7 ”display and keypad.
  • Fast commissioning with direct connection.
  • On board level sensor allows water level control (No need external sensor)
  • User programs support, troubleshooting with pictures and descriptions, diagnostic control.
  • and flexible use thanks to the extensive parameter list.
  • Backup and restore via USB (programs, parameters, database, version update, etc.)
  • Quick access to frequently used programs with 5 memory keys.
  • Suitable for heating / steam heating.
  • Suitable for Coin Operated.
  • Support for Tilting, Helms protocol, Wet cleaning, Washing hold support.
  • Sequental program execution.
  • AC-Drive, balance detection and laundry weight control via Modbus RTU.
  • Ethernet connection with OPC-UA and JENSEN cocpit support, remote control.
  • Ability to communicate with many data collection services with OPC-UA.


  • Features

    Inputs / Outputs

    Analog Input

    Onboard Level Sensor (Hydrostatic 0-100 cm)
    Temperature Sensor Input (-10~100 °C)

    1
    1

    Digital Input

    5-24V DC

    16

    Counter Input

    5-24V DC 1 KHz

    1

    Digital Output

    24V DC 1A Relay NO

    24

    Programming

    Program Count

    16 Default Programs
    84 User Programs

    100

    Technical Specifications

    Operating Voltage

    24 VDC

    Power Consumption

    15 Watt

    Operating Temperature

    0~60 °C

    Operating Humidty

    %20~%95 (Non condensing)

    Processor

    Linux Embeded CPU

    Screen Size

    7” TFT

    Screen Resolution

    800x480

    Ethernet

    10/100 Mbit

    USB 2.0

    1

    RS485 Communication port

    1
